Guard Shack 4x6

SHIPS ASSEMBLED. INCLUDES FORKLIFTABLE STEEL FLOOR. STEEL DOOR AND WINDOWS ARE OPTIONAL. LAYOUT IS CUSTOMIZED TO YOUR REQUIREMENTS.

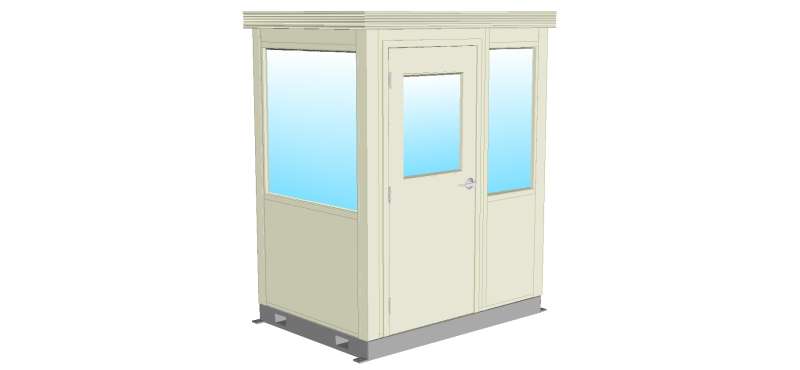

4x6 Guard Building

Click Images to Enlarge

Flo
Parking Lot Booth
Exterior ISO
Base
Diamond plate
Floor

National Partition's 4x6 guard shack offers a durable, customizable solution for those needing a prefab guard station.

We can fully tailor our guard shacks to meet your specific needs with layouts designed to maximize your operation's efficiency. With our expertise, you can get a guard shack that optimizes space and investment value.

Built with high-quality material, our guard shacks are sturdy and long-lasting. Choosing National Partition's 4x6 guard shack ensures your security personnel is well-protected.

Ideal for secure locations, construction sites, warehouses, or any other setting, our guard shack is the solution you need. Contact us to discuss your requirements and let us help you create the ideal security booth for your operation.

7030

Availability: 4-5 weeks Billing: By Invoice Payment Options: Check, ACH, Wire, or Credit Card.

See Options

Best Price Guarantee: Learn More

Store Questions? Call:

See more models

Need something different? Contact Us

View Technical Details: Here

View What's Included: Here

Choose Your Options

0.00

Color Selection

Select the color for the walls, doors, window frames and trim. Color is used on both sides of the wall.

1110.00

Exterior Steel Door 40" x 84"- High, with window

MaxDoor, Heavy Duty Steel Door 40"x84" w/ 1/4" tempered glass, galvanealed: 20ga Door w/16ga Jamb, Powder Coat Finish, TiteSeal™ Gasketed Jamb, ADA compliant commercial quality hinges and lever lockset. Hinge and swing as requested in design phase.

1110.00

Steel Door 40" x 84"-High, without Window

MaxDoor, Heavy Duty Steel Door 40"x84", without Window, galvanealed: 20ga Door with 16ga Jamb, Powder Coat Finish, TiteSeal™ Gasketed Jamb, ADA compliant commercial quality hinges and lever lockset. Hinge and swing as requested in design phase.

302.00

Door Closer for Single Door

Heavy duty commercial grade door closer for single door only.

999.00

Insulated Fixed Glass Window 2' wide

Fixed Window. Nominal size is 2' x 4' high. Double pane insulated tempered glass. Frame color: White.

1484.00

Insulated Fixed Glass Window 4' wide

Fixed Window. Nominal size is 4' x 4' high. Double pane insulated tempered glass. Frame color: white or beige.

1495.00

Insulated Sliding Glass Window 4' wide

Side Sliding Window. Nominal size is 4' x 4' high. Double pane insulated tempered glass. Frame color: white or beige.

1846.00

Insulated Sliding Glass Window 6' wide

Side Sliding Window. Nominal size is 6' x 4' high. Double pane insulated tempered glass. Frame color: white or beige.

231.00

Electrical Outlet Pre-Wired

Electrical Outlet (Duplex type), 110v 15a, with Wiring. An electrician is only required to make breaker panel connections and bring power to the building.

281.00

Light Switch Pre-Wired

Light Switch, 110v 20a with Wiring. An electrician is only required to make breaker panel connections and bring power to the building.

327.00

Light Fixture Pre-Wired

Light Fixture, Pre-Wired. An electrician is only required to make breaker panel connections and bring power to the building. Bulbs are not included. Lights are sized according to available ceiling space.

271.00

Air Conditioner Outlet Pre-Wired

Electrical Outlet prewired for Air Conditioner. An electrician is only required to make breaker panel connections and bring power to the building.

197.00

Electrical Breaker Panel

Breaker Panel with 4 Circuits, 100 amp max. capacity. (example: 1 pole breaker for lights, 1 for outlets, 1-2 for air conditioner)

Typical: 1 breaker panel per building.

200.00

Air Conditioner Wall Prep

Air Conditioner wall cutout and trim. Use on a 4' wide wall panel without a window.

NOTE: Use for customer provided air conditioner. This is already included in our AC Packages.

1256.00

Air Conditioner Package 7500 BTU

Wall Unit Air Conditioner with heat 7,500 BTU Cool/4,000 BTU Heat

Includes: (i) AC unit, (ii) wall cutout with trim.

3327.00

Air Conditioner Roof Mounted 13,500 BTU

Dometic Brisk II Polar White Roof Mount Air Conditioner. Nominal capacity,13,500 BTU/Hour; High-performance motor and fan
Electrical rating - 115V AC, 60 Hz, 1 Phase, 2800 watts.

Includes: (i) AC unit, (ii) roof cutout.

550.00

Desk Top 4'

Shelf style desk top, nominal size 18" x 4'. Metal faced plywood with support.

750.00

Desk Top 6'

Shelf style desk top, nominal size 18" x 6'. Metal faced plywood with support.

9.25

Tennessee Sales Tax (for in-state orders)

We do not charge or include sales tax for any out-of-state destinations. Any order with a Tennessee resale or tax exempt certificate is not taxed.

4x6 Guard Building

Guard Shack 4x6

SHIPS ASSEMBLED. INCLUDES FORKLIFTABLE STEEL FLOOR. STEEL DOOR AND WINDOWS ARE OPTIONAL. LAYOUT IS CUSTOMIZED TO YOUR REQUIREMENTS.

  • 7030.00 Base Unit
Total 0

Let us do your quote. Start Here

Store Questions? Call:

All Major Credit Cards Accepted.
Paypal 6 month financing is available with approved credit.
Due to the size and custom nature of the product, returns can not be allowed.

What's Included

Engineered To Be Better

  • Wall panels are insulated R-13.5, heavy duty utilizing 24 ga. galvanized steel exterior and interior
  • Roof panel is insulated R-18 and one-piece leak proof design
  • Floor is durable diamond plate steel, powder coated, insulated, liftable from all sides
  • Fixed and sliding windows are insulated double pane glass (optional)
  • Full width or wider windows up to 6 feet wide, and 4 feet tall for greater visibility (optional)
  • Doors are heavy duty steel, powder coated, and include a weather chain and weather angle (optional)
  • Powder coated wall and roof components for durability
  • Optional powder coated wall panels

  • Roof Panel

    Roof Panel 4-inch thick consisting of two sides of white FRP (fiberglass reinforced plastic), laminated to an EPS insulated core. The best roof in the industry.

    • Insulated to R-18
    • Corrosion resistant FRP
    • Leak proof one piece design

    Note: All trim components are powder coated to match the walls.

  • Wall Panels

    Wall Panels 3-inch thick consisting of two sides of 24 gauge white galvanized steel, painted with a baked-on acrylic enamel paint, laminated to an EPS insulated core. The highest quality wall panels in the industry.

    • Insulated to R-13.5
    • Corrosion resistant galvanizing
    • Heavy duty and durable 24 gauge steel

    Note: All trim components are powder coated to match the walls. Powder coated wall panels are optional.

  • Base and Floor

    Heavy duty all steel base and insulated floor system. Fully welded design, 6 inches high, forkliftable from all sides, rugged diamond plate steel floor. Features anchor tabs welded to the 4 corners. The most durable floor system in the industry. NEW: Now finished on all sides, including the bottom with a long lasting durable powder coat finish.

    • Fork pockets on all 4 sides for portability
    • Galvanized perimeter steel G-Section
    • Heavy duty non-skid diamond plate floor
    • Insulated
    • Powder Coat Finish on all sides

  • Custom Configuration & Approval Drawings

    The building includes your customized configuration, you decide where you want to place your selected options: ie doors, windows, outlets and AC. Approval Drawings are provided for you to review before we process your order.

    We will call you after you place an order to confirm your requirements.

  • Flexible Option Selection

    A National Partitions online store exclusive: Configure your building with exactly the options you want. You select items such as windows, doors, HVAC, and electrical in the quantity of your choice.

  • Factory Assembly & *Delivery

    This unit is shipped fully assembled from our factory.

    *NOTE: Delivery is not included or optioned for factory assembled units and must be quoted separately. Please call us at 800-378-2350.

  • Weather Sealed

    Fully weather sealed exterior building. All seams and joints are sealed with a silicone caulking.

    Doors fully gasketed and include weather chains and weather angle above the jamb.

    Windows (fixed and sliding) are high quality Pella brand, factory sealed and properly gasketed.

Technical Details

Item Forkliftable Exterior Guard Shack
Condition New
Type Assembled Exterior Building
Depth 4-1/2 ft. nominal OD, 4 ft. nominal ID
Width 6-1/2 ft. nominal OD, 6 ft. nominal ID
Height 8-1/2 ft. nominal OD, 90 in. nominal ID
Color White
Trim color White
Wall and Roof Thickness Walls: 3 inches thick, Roof: 4 inches thick
Wall Panel Material 24 ga. galvanized and painted steel on two sides, laminated to a 3-inch thick thermal insulated EPS core
Roof-Ceiling Panel Material One-Piece leak proof design, FRP on two sides, laminated to a 4-inch thick thermal insulated EPS core
Roof Overhang 1-inch nominal on all sides (larger overhangs are available)
Forkliftable Floor Base Insulated welded steel base features a rugged steel diamond plate floor. Building can be lifted from the front or back.
Insulation R-13.5 walls, R-18 roof
Fire Rating Class A
Fire Test Standards ASTM 84
Doors Optional
Windows Optional
Lights Optional
Outlets Optional
AC Outlet Optional
Breaker Panel Optional

You Provide

  • An Electrician (for power and breaker panel hookup)
  • Unloading on arrival (forklift required)
  • Anchors for existing concrete pad
  • Installation of air conditioners
  • Final weather sealing if required
  • All optional items not purchased

Not Included

  • Customizing or resizing of any components
  • Taxes (we only charge sales tax in TN)
  • Permits or fees
  • Engineering services, sealed drawings, or calculations
  • Seismic zone consideration
  • Forkliftable base finish or floor finish, other than prime first coat or galvanized
  • Anchoring to your existing concrete slab
  • Windows, HVAC, Electrical and Delivery are all optional and not included items
  • All air conditioners are shipped uninstalled
  • Items not included can be added as required
